HELLTACO BUILT BY: Stellar Built and MESO customs
Owner Name: Stew Gibbs
Photography : Tyler Cates

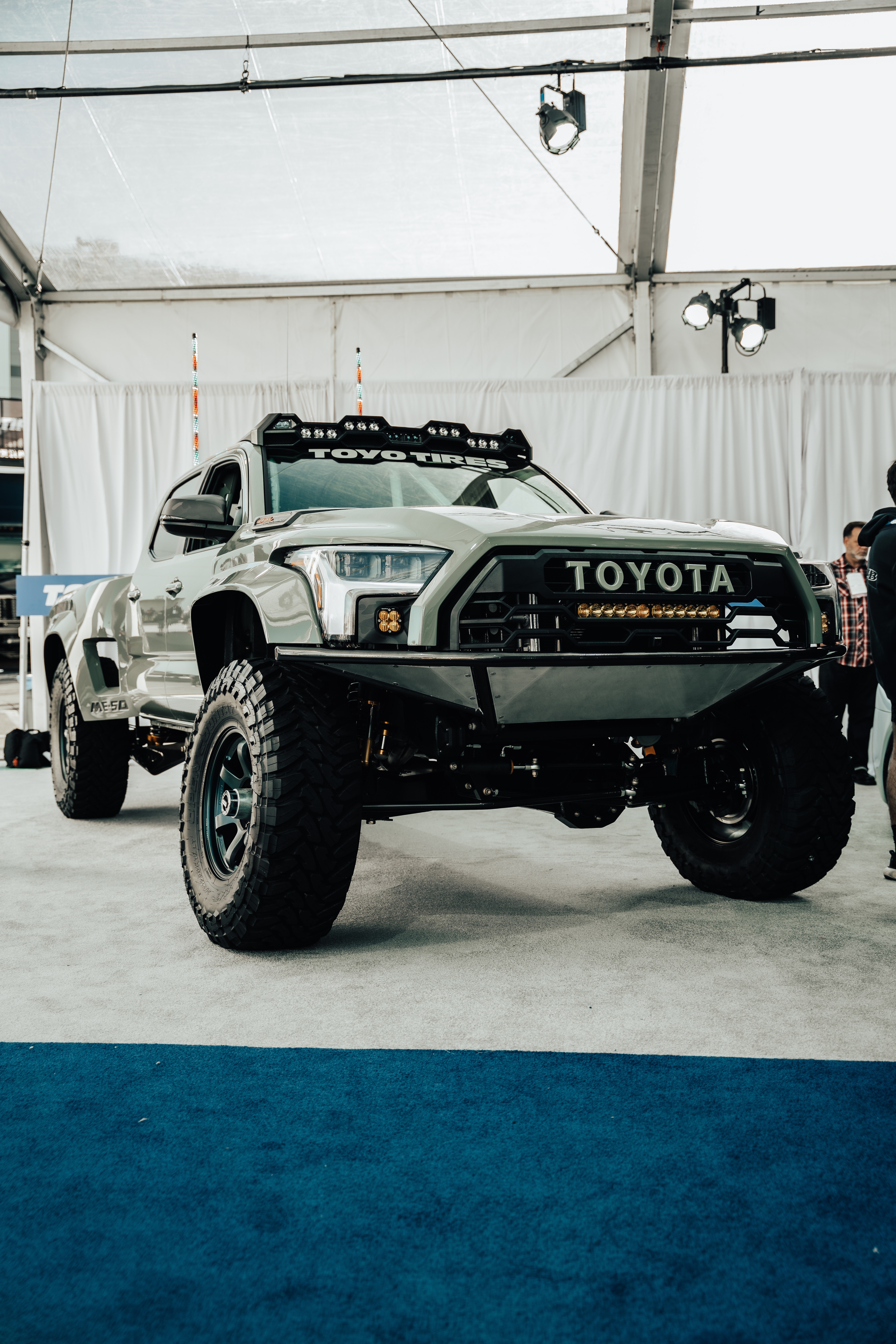

For GlamisDunes.com first featured vehicle How about a Hellcat swapped Tacoma that rips both dirt and sand!! We give you "HellTaco!!"
ENGINE:
6.2L Dodge HellCat engine
Custom solid motor mounts

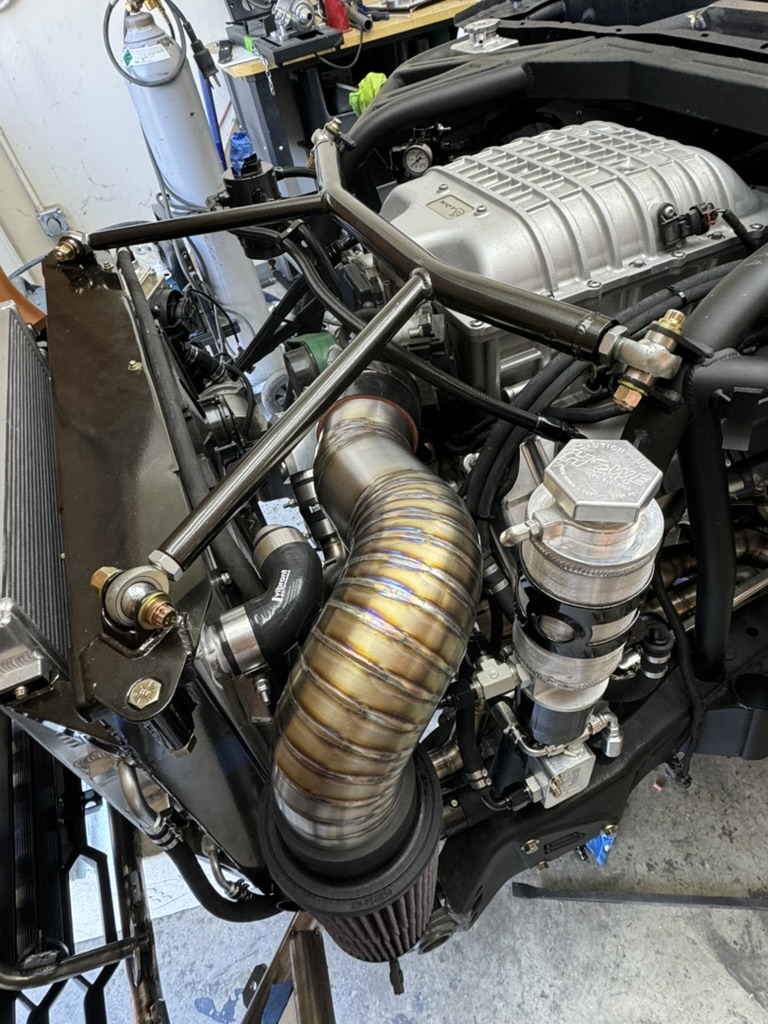

Custom Titanium intake with K&N filter
Billet valve covers
Custom TIG welded headers
Formula Zpipe with CooksCraft Mufflers
Mighty Mouse catch can
CBR dual pass radiator
CBR engine oil cooler
FI interchiller Supercharger pump
Mishimoto Heat exchanger
Canton Remote coolant tank
Fuelsafe 60 gallon fuel tank
Radium in m-tank surge pump
Aeromotive FPR
Aeromotive inline fuel filter
All vibrant AN line/fittings
Howe performance steering system
CBR power steering cooler
DRIVETRAIN:
8HP90 8speed with PCS TCM2600 module
Behemoth NP205 Billet divorced T-case
Currie 9” full floating rear end with 40spline axles
Dana 44 front differential 4.88 geared
Custom driveshafts for front and rear
CBR transmission cooler
BRAKES:
Wilwood Dual mount pedal assembly
Wilwood compact master cylinders
Jamar remote brake resivoirs
Wilwood 6 piston radial mount front calipers
Wilwood 4 piston rear calipers
Kibbetech Hydraulic handbrake
Wilwood 4 piston calipers(for handbrake)
Jamar remote mount resivoir
2pc Rotors throughout
WHEELS:

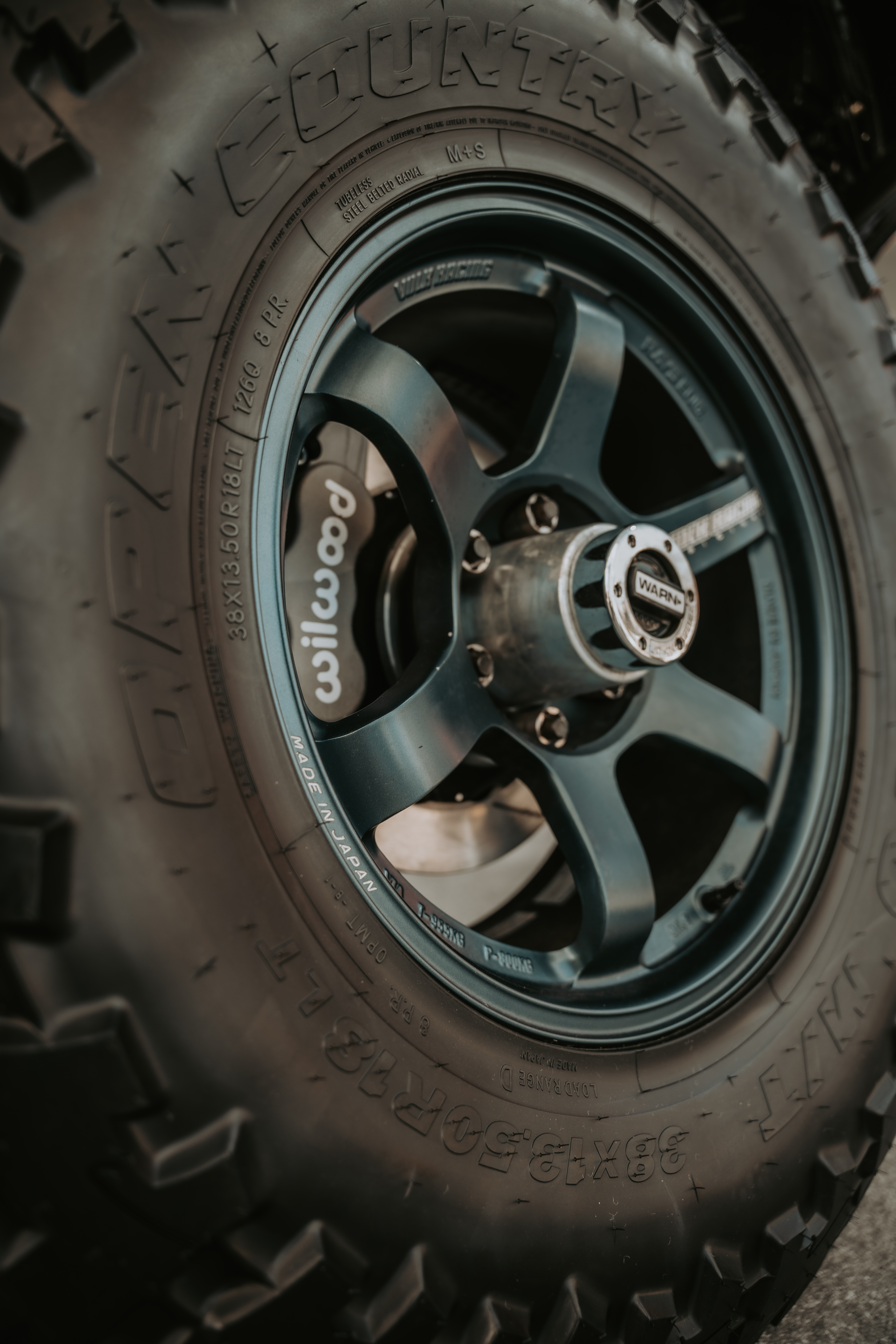

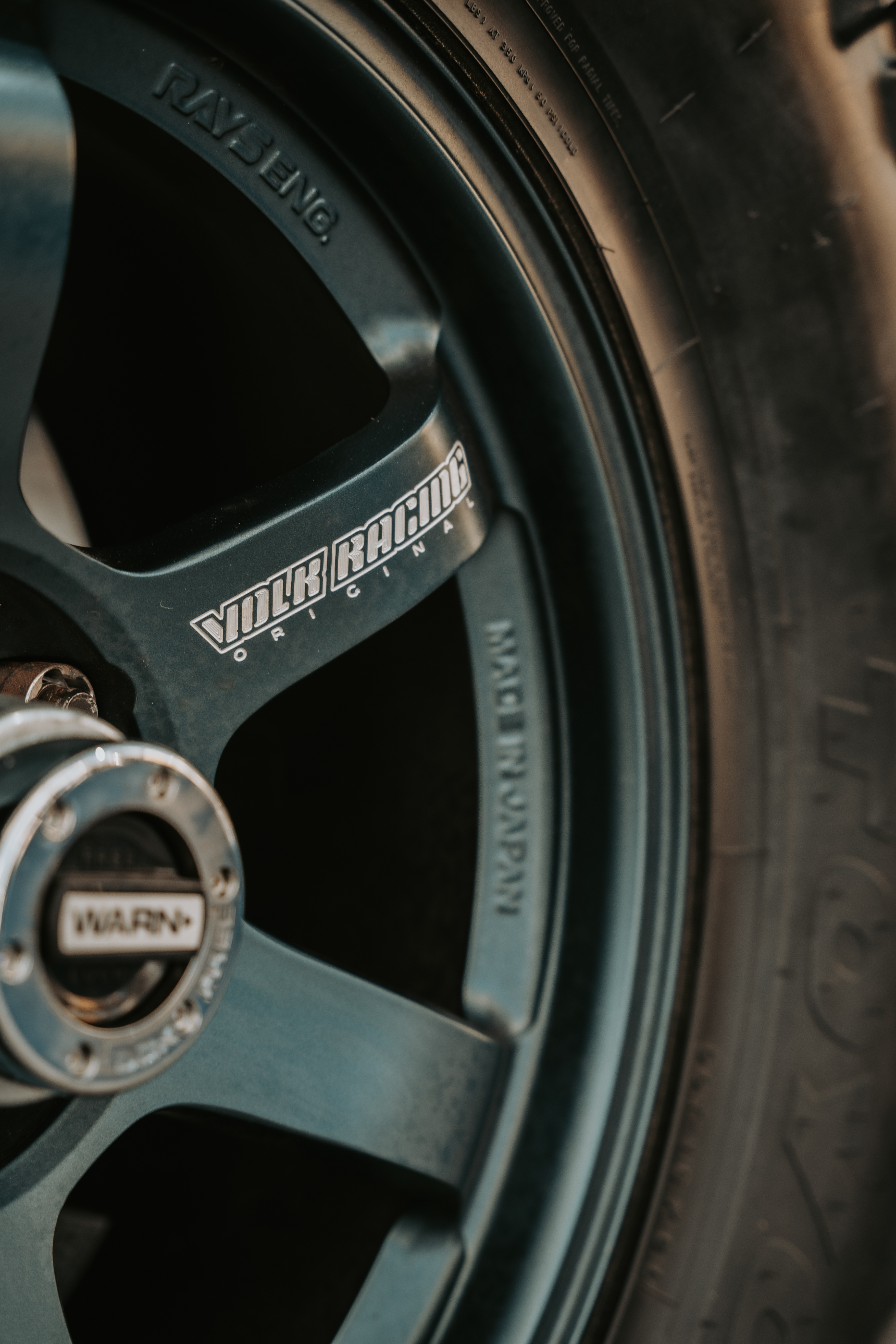

Show: VOLK TE37 18x9” +0 with TOYO MT 38”
Go: KMC billet Beadlock 17x9” +12 with 39”BFG Baja T/A
SUSPENSION:
Front:

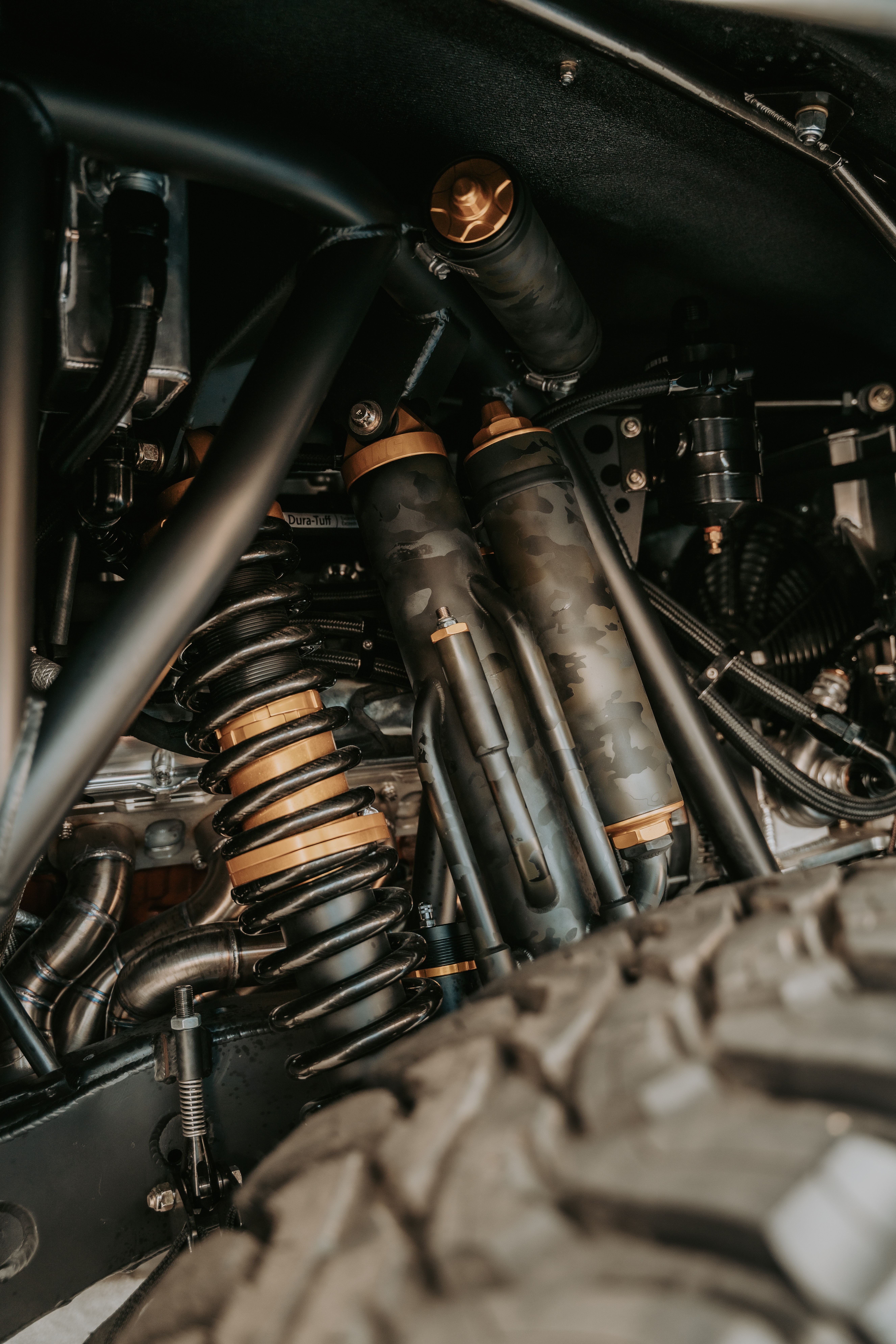

King 14” 2.5 Coilovers
King 14” 3.0 bypass
King 2.0 Bump stop
Kartek Limit straps
Rear:

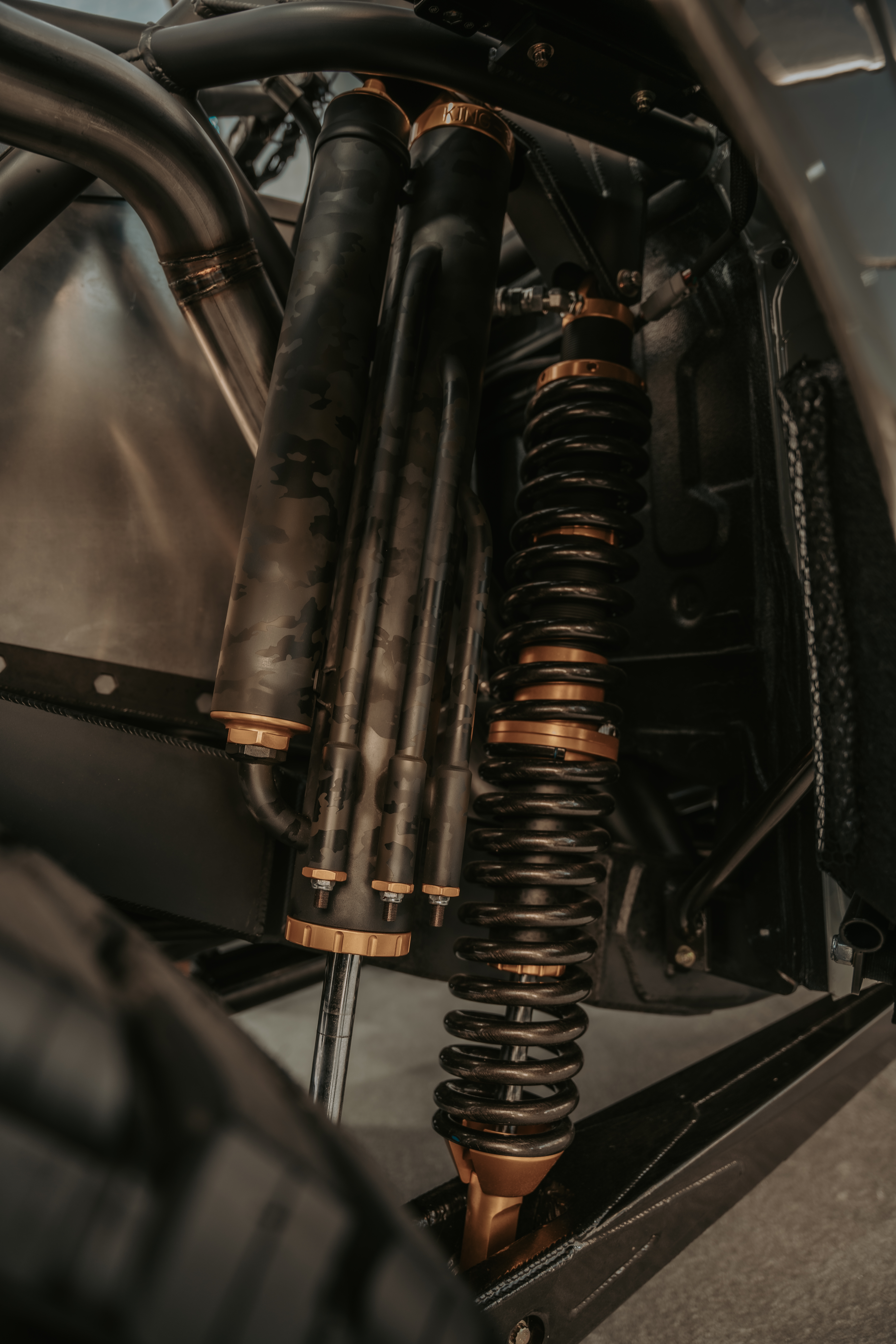

King 16” 2.5 Coilovers

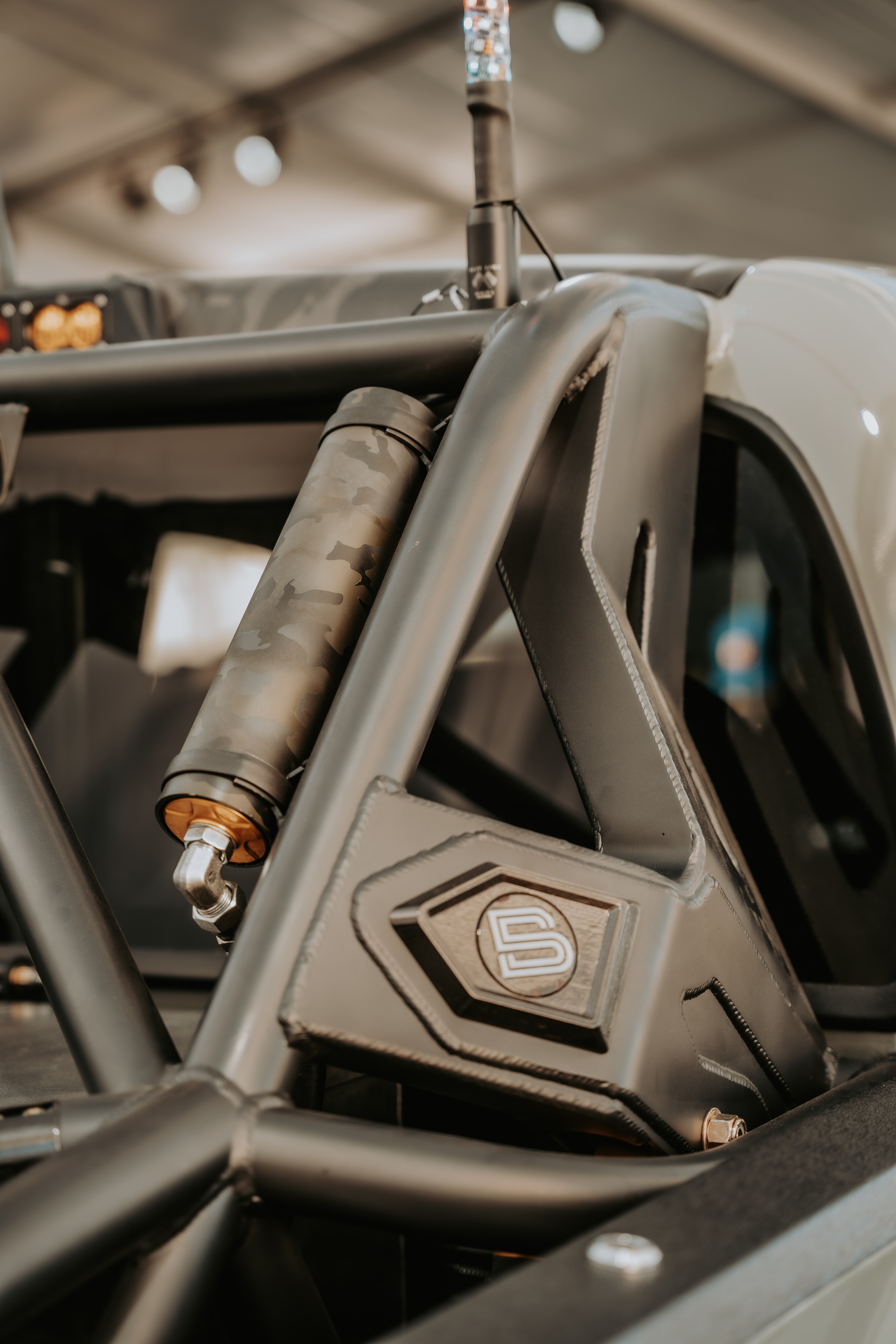

King 18”3.5 Bypass 6-valve
King 2.5 Bump Stops
Kartek limit straps
All shocks Cerakoted multicam black
All shock hardware re-anodized to gold
Solo motorsports Front bronco I beam kit
(Cut&turned +4” over)
Solo motorsports Radius arms
Solomotorsports Rear trailing arms (60”)
Eversen performance sway bar
ProEagle jack
BODY:
Custom molded fiberglass 1 piece front clip
Custom molded fiberglass Bedsides
(All Modeled off a 3rd Generation Tundra)
OEM Toyota lunar rock paint

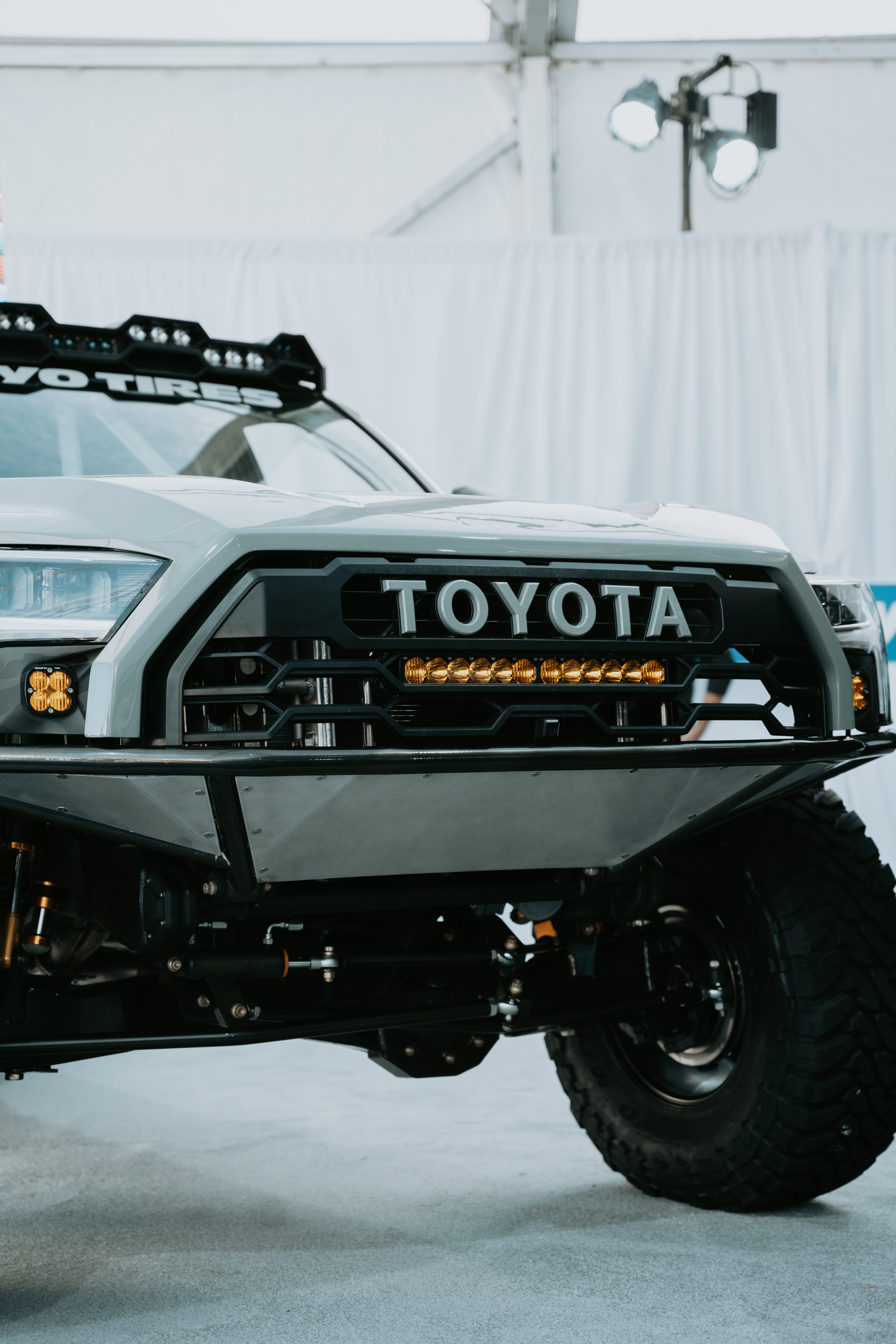

Custom tube front bumper and Al skid plate
Custom tube rear bumper
Custom tube front and back half cage

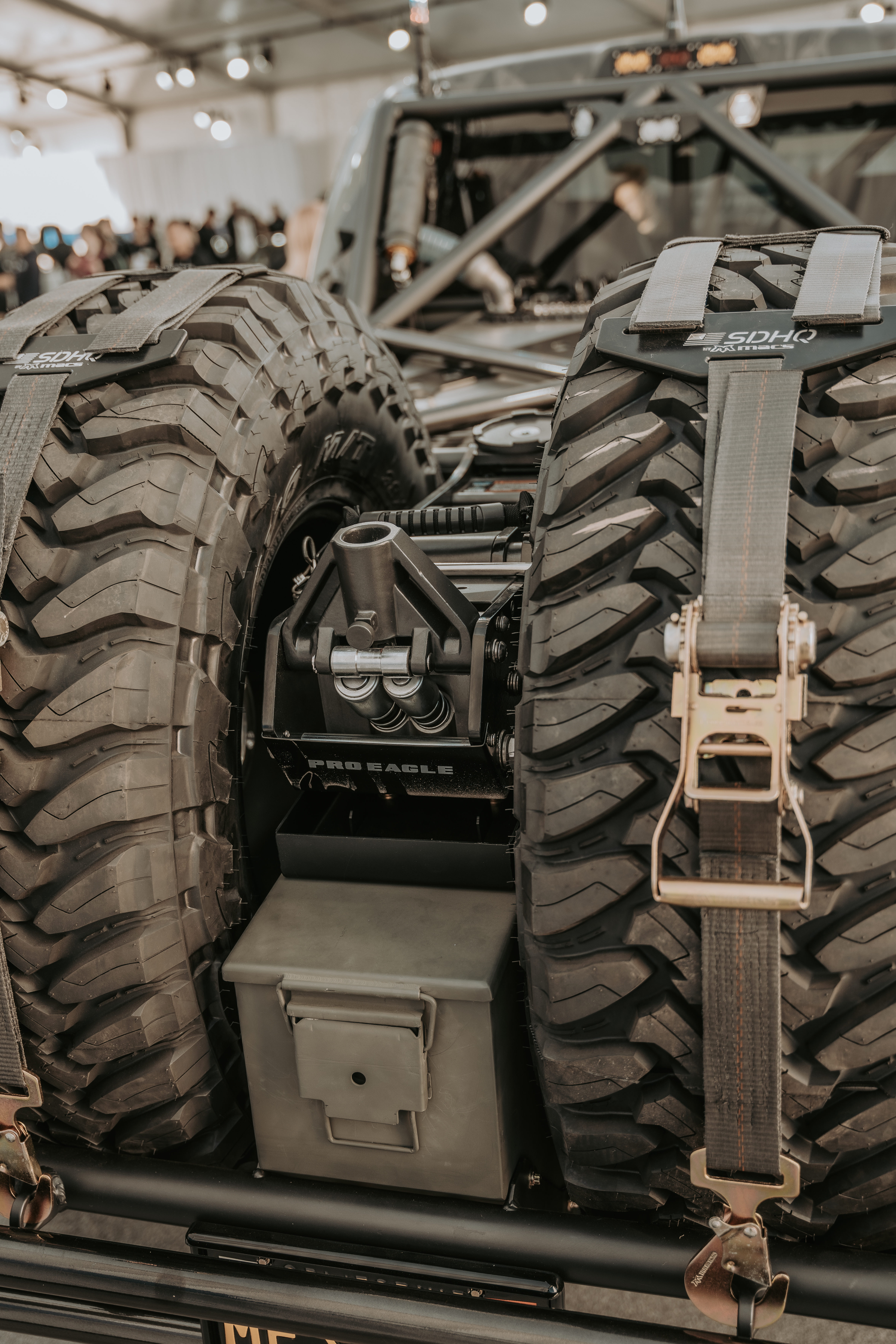

Custom Ammo can storage with dual spare tire cage
LIGHTING:
SwitchPro 9100
Baja Designs Squadron Pro Fog lights
Baja Designs S8 grill light bar
Baja Designs S1 roof lights in custom light fairing
Baja Designs S2 rear lighting

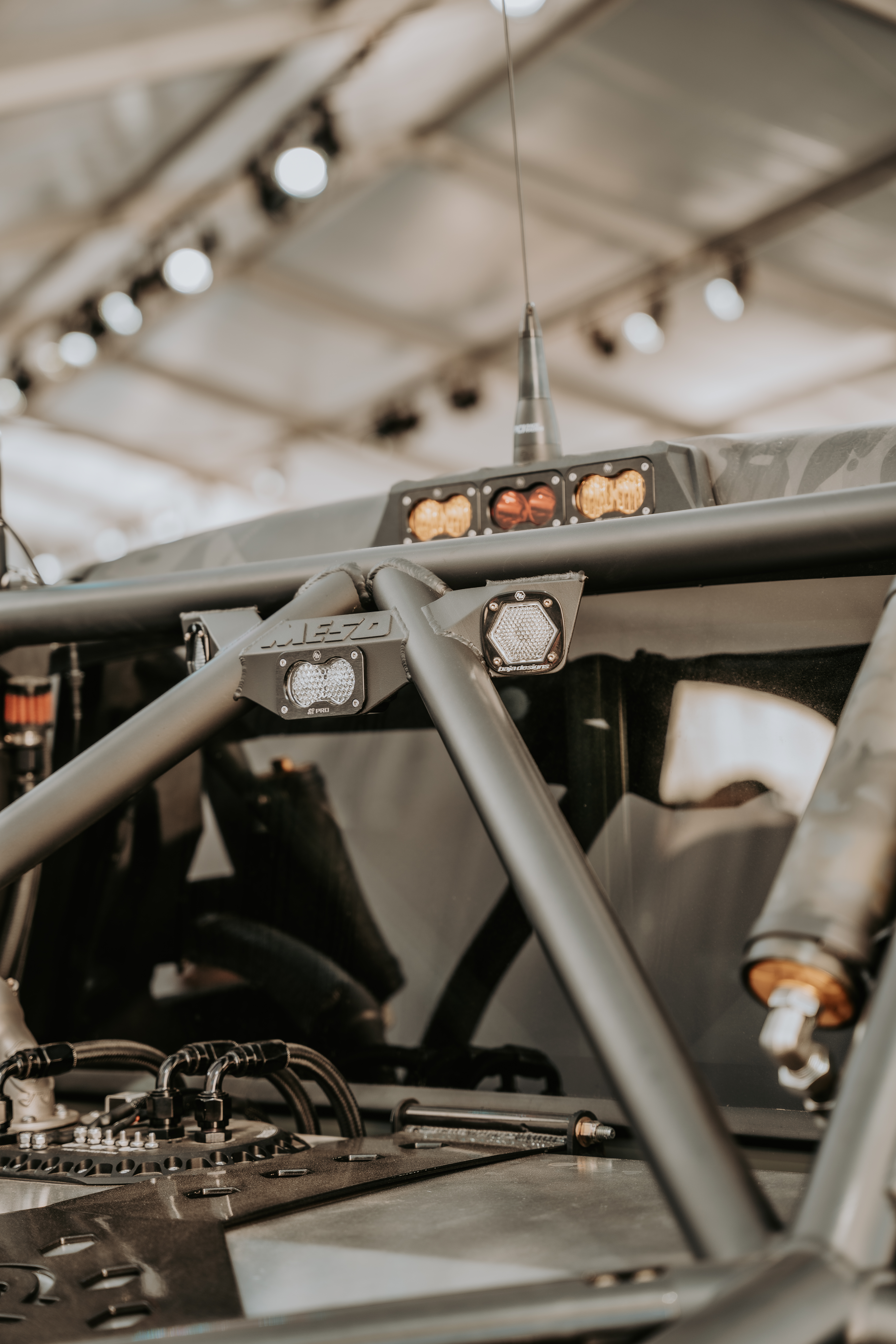

Baja Designs S2 Chase+brake light in custom 3rd brake light housing
Baja Designs rock lights
Blueline 4ft LED whips
OEM LED headlights
FORM lighting LED tail lights
REDARC dual battery charger
Dual ODYSSEY batteries
INTERIOR:

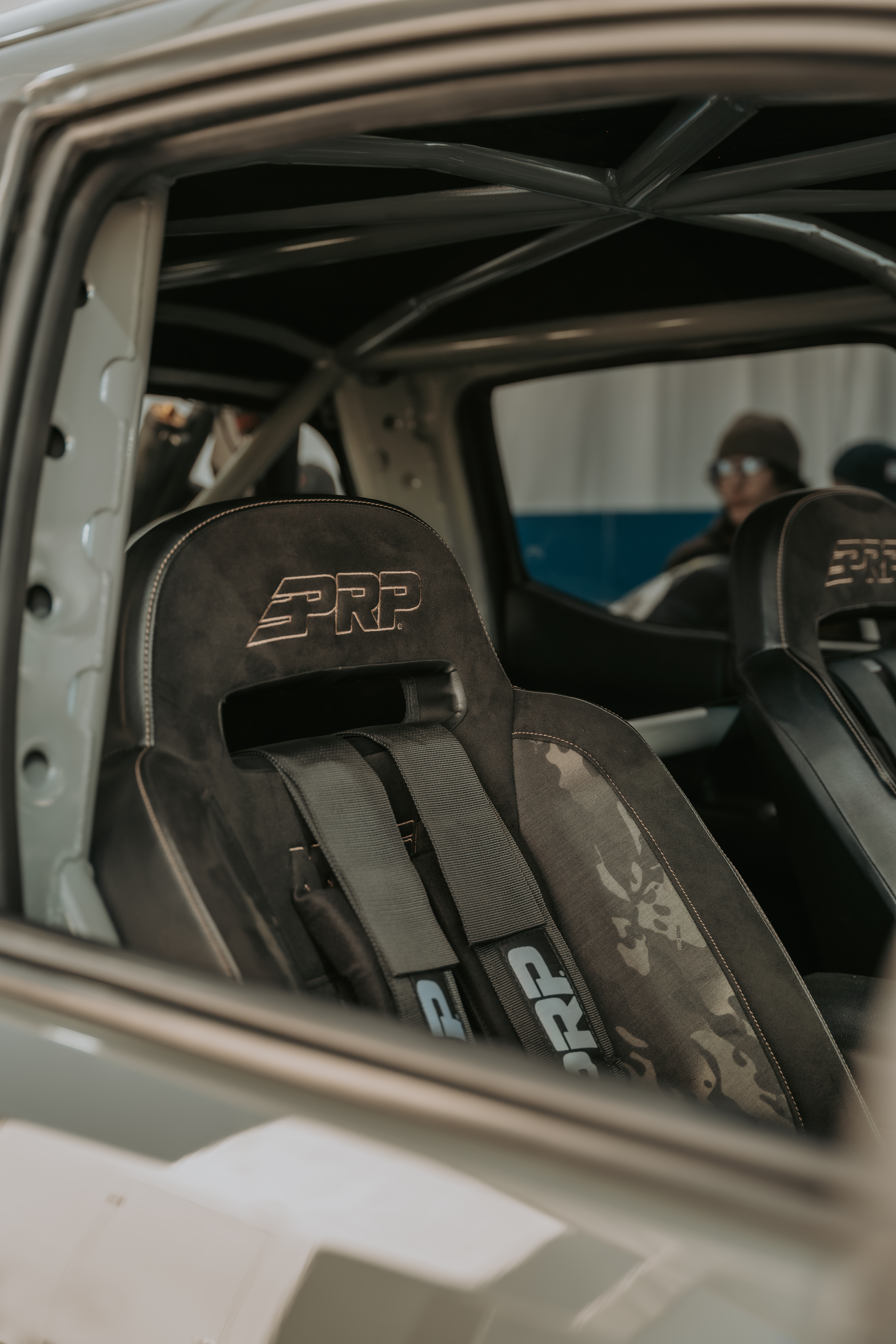

PRP Comp elite bucket seats with custom multicam and logo
PRP elite high back bench seat with custom multicam
PRP 5.1 harnesses
TerraCrew Steering wheel with Sweet mfg QD hub
Madtrace magnetic paddle shifters

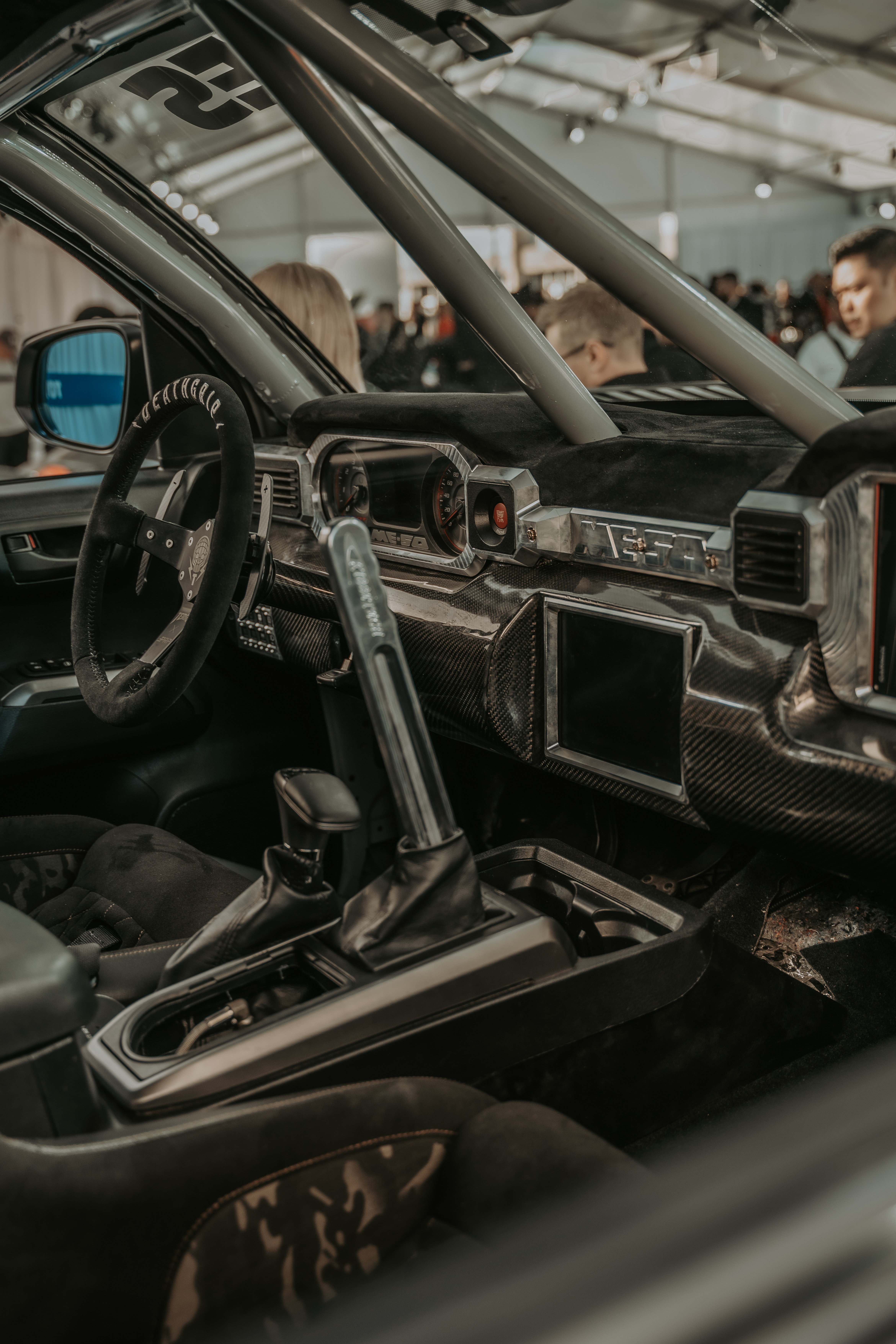

Custom carbon fiber molded dash
Custom billet dash bezels
OEM Hellcat gauge cluster
OEM Hellcat touchscreen
Vintage air magnum AC/blower
Custom Roll cage including intrusion bars, and side impact bars
Custom Starlight headliner
PCI intercom
Kenwood Radio
Garmin Tread XL navigation
Wolfbox LCD rear view mirror
