2d Shift Shaft Support

mbarruda

mbarruda

New member
Joined
Dec 13, 2022
Messages
7
Reaction score
1
On my 4 seat DD car with a Mendeola 2d transaxle, the gear shift shaft goes from the shifter to the transaxle (obviously) but with no support between those 2 points. This causes a gear oil leak in the nose cone oil seal.

What is good way to add support to this shaft? I've tried to look for a product on kartek but i haven't been able to find anything.

Thanks

I've seen people mount a heim joint somewhere along the path to the rear for support.IMG_2140.png

The problem with the heim joint is that it is not sealed and sand gets in there, grinding and binding up the shift shaft over time.

Weddle sells a sealed linear bearing carrier that can be mounted to the chassis and support the shaft. It also has a zerk fitting to grease it. These are not available to purchase online, you would need to call Ron or send an e-mail to info@weddleindustries.com and they can assemble one and ship it to you. They are a bit pricey at around $100 and requires another set of u-joints (4 total), but offers the best support and actuation between the shifter and transmission.

Shift Linkage Guide Block.JPG

Also, there are bushings in the nosecone that wear down and require replacement. They are a total pain in the ass to replace, but will help alleviate the leaking seal.

Sean,

Thanks! I'll send an email later today. How far away from the transaxle should that be mounted?

Is replacing the bushing in the nosecone something that needs to be done by a professional shop?

mbarruda said:
Sean,

Thanks! I'll send an email later today. How far away from the transaxle should that be mounted?

Is replacing the bushing in the nosecone something that needs to be done by a professional shop?
Click to expand...
Support should be mounted as close to the transaxle as possible to get the best support for the shift shaft coming out of the nosecone.

Bushings the nosecone are easy to access once the nosecone is off the trans, but they are a real pain in the butt to replace without good tools to remove and install them.

SeanRitchie said:
Support should be mounted as close to the transaxle as possible to get the best support for the shift shaft coming out of the nosecone.

Bushings the nosecone are easy to access once the nosecone is off the trans, but they are a real pain in the butt to replace without good tools to remove and install them.
Click to expand...
Thanks again Sean. Going to add this to the summer project list.

  • Like
Reactions: FOG
Rockwood said:
dansperformanceparts.com

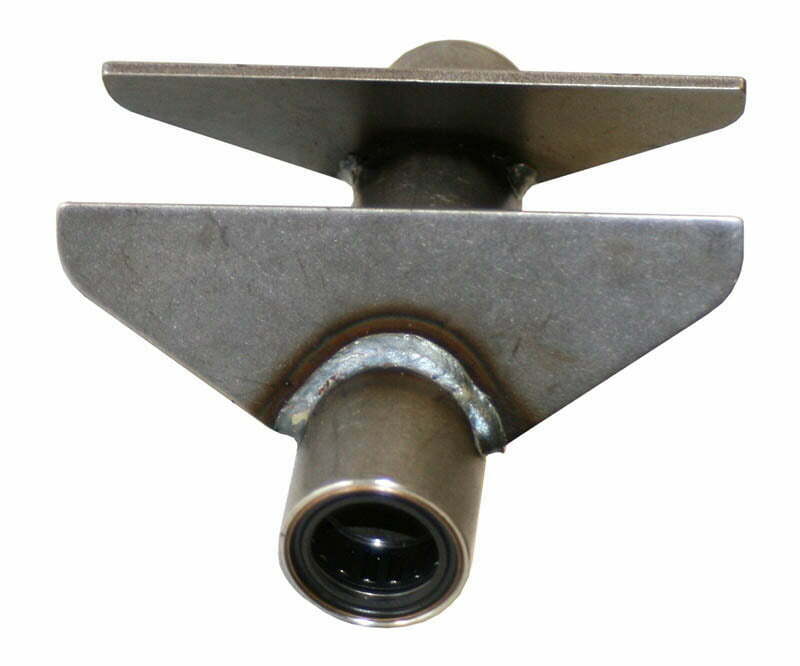

WELD-ON STEERING SHAFT MOUNT WITH NEEDLE BEARINGS / 3/4in SHAFT / EACH - Dan's Performance Parts

Part Number 14-425017-3B: 3/4in WELD-ON STEERING SHAFT MOUNT NEEDLE BEARINGS / EACH
dansperformanceparts.com dansperformanceparts.com

Doesn't have a grease fitting, but I've had this for my steering for 6 seasons now, zero issues.
Click to expand...
That's a nice piece, but only meant for shaft rotation. The needle roller bearings aren't the best for in/out motion shaft motion.

The Weddle carrier uses linear motion bearings to allow rotation and in/out shaft motion. They are actually the same bearings from the 091 nosecones.

SeanRitchie said:
That's a nice piece, but only meant for shaft rotation. The needle roller bearings aren't the best for in/out motion shaft motion.

The Weddle carrier uses linear motion bearings to allow rotation and in/out shaft motion. They are actually the same bearings from the 091 nosecones.
Click to expand...
Derp. Yeah, didn't take shaft thrust (hehe) into consideration.

@SeanRitchie Would you happen to know the distance the shaft moves front to back when going from 1st to 2nd or 3rd to 4th? I measured 22mm. Does that sound right?

mbarruda said:
@SeanRitchie Would you happen to know the distance the shaft moves front to back when going from 1st to 2nd or 3rd to 4th? I measured 22mm. Does that sound right?
Click to expand...
I'm not sure, I've never measured that travel before. Taking a measurement from 1st to 2nd on your exiting trans would be sufficient.
